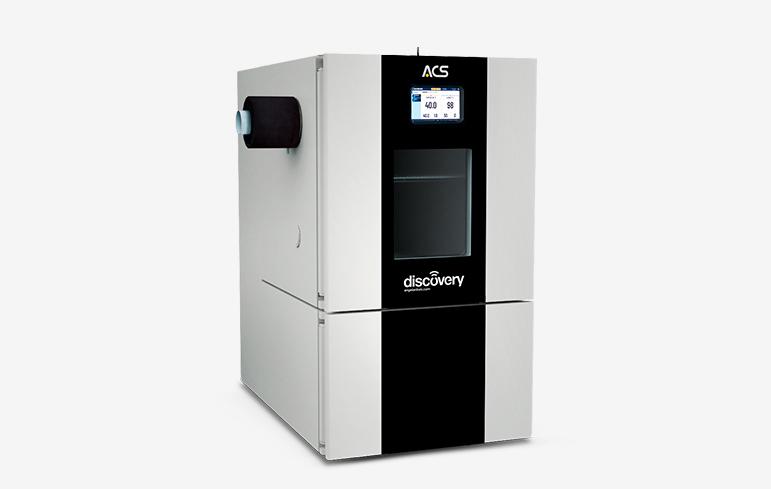

Discovery My Climatic Chambers with fast cooling kit by LN2

ACS Discovery My Climatic and Thermostatic Chambers cooled with LN2 are used when high cooling values are required. In these cases, liquid nitrogen (LN2) is injected, which allows a cooling rate of over 30K/min. These tests are especially useful for investigating the reaction of electronic components used in aeronautical and aerospace applications, which undergo sudden changes in their working environment within a few seconds.

  • The test helps to reveal potential defects before the specimen passes into production, ensuring:
  • A product of tested quality
  • Savings on design costs
  • Lower maintenance costs
  • More satisfied customers
  • discovery-my-climatic-chamber-with-fast-cooling-kit-by-ln2-angelantoni

The wide range of the ACS series Climatic and Thermostatic Chambers allows you to control the temperature and humidity inside the test compartment, in a range from -70°C to +180°C (temperature) and from 10% to 98% (relative humidity).

BENEFITS

  • The compact body in RAL 7044 grey provides excellent corrosion protection with a powder coated finish
  • The electromagnetic door lock provides maximum operator safety
  • Ecological refrigerant gas in line with the European Regulation 517/2014
  • 10” touchscreen panel with an intuitive, user-friendly interface
  • New software that allows remote control of all chamber functions
  • Automatic reporting, self-diagnosis, preventive maintenance

The technical data sheet for chambers with auxiliary cooling with LN2 changes according to that given in the table that can be downloaded here.

To download the technical data sheets for the chambers in the standard configuration, click on the model you are interested in:

  • Inspection window
  • Ecological refrigerant gas in line with the European Regulation 517/2014
  • Internal light
  • Electromagnetic door lock
  • Wheels and feet

Download the catalogue to see the full standard configuration.

  • Additional portholes
  • Water-cooled condenser
  • UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
  • UPS for the PLC
  • Stainless steel internal shelves
  • Notched porthole

Download the catalogue to see the complete list of accessories.

The MyKratos™ management software is embedded in the machine in built-in and completely dedicated hardware, which allows the control and management of the chamber functions. No installation is required, and it can be accessed from a PC via web browser or via the free app developed for tablets and smartphones. MyKratos™ allows multiuser and multilevel connections, even from different devices. The MyAngel24™ self-diagnosis and remote service module is also available and included with the software.

BASIC VERSION

E VERSION – stability test

ES VERSION 5K/min
flower® VERSION – energy saving
ESS VERSION 5/10 K/min

CLIMATIC AND THERMOSTATIC MODEL

CLIMATIC MODEL

CLIMATIC AND THERMOSTATIC MODEL

CLIMATIC MODEL
CLIMATIC AND THERMOSTATIC MODEL

Field T -40/+180°C

Field T -20/+180°C

Field T -40/+180°C

Field T -40/+180°C

Field T -70/+180°C

DM340 (T)
DM600 (T)
DM1200 (T)
DM1600 (T)

DM340 E
DM600 E
DM1200 E
DM1600 E

DM340 (T) ES
DM600 (T) ES
DM1200 (T) ES

FM340
FM600
FM1200

DM 250 C (T) ESS
DM 500 C (T) ESS
DM 1000 C (T) ESS
DM 1400 C (T) ESS

Field T -70/+180°C

Field T -70/+180°C

Field T -70/+180°C


DM340 C (T)
DM600 C (T)
DM1200 C (T)
DM1600 C (T)

DM340 C (T) ES
DM600 C (T) ES
DM1200 C (T) ES

Field T -70/+180°CFM340 C
FM600 C
FM1200 C

Related products
    discovery-my-climatic-chambers-for-severe-stress-screening
    Discovery My Climatic Chambers for severe stress screening

    The ESS version, available with the temperature change rates of 10K/min and 15K/min, was developed to detect product and manufacturing defect. These tests can reveal “infant mortality” an...

    discovery-my-climatic-chambers
    Discovery My Climatic Chambers

    ACS Discovery My Climatic and Thermostatic chambers guarantee high performance, a generous standard configuration and many different accessories for adapting to all the requests of our customers.

    air-to-air-thermal-shock-chambers

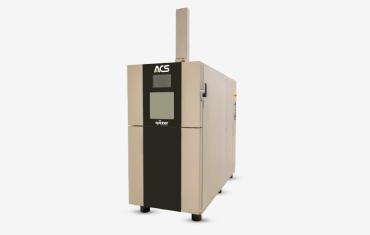

    Air to Air Thermal Shock Chambers
