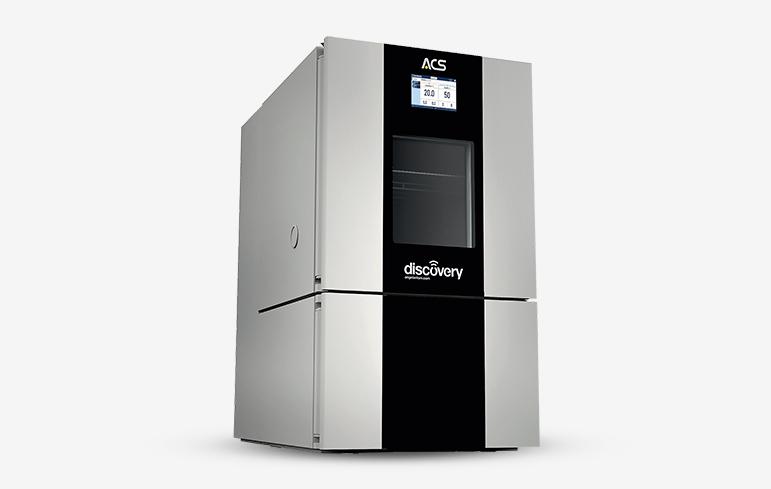

Discovery My Climatic Chambers

ACS Discovery My Climatic and Thermostatic Chambers guarantee high performance, a generous standard configuration and a large number of accessories for adapting to all the requests of our customers.

  • The test helps to reveal potential defects before the specimen passes into production, ensuring:
  • A product of tested quality
  • Savings on design costs
  • Lower maintenance costs
  • More satisfied customers
  • discovery-my-climatic-chamber-angelantoni
  • discovery-my-climatic-chamber-angelantoni-test-technologies
  • discovery-my-standard-climatic-chamber-acs
  • discovery-my-standard-climatic-chamber-att

These chambers can be supplied with the new ecological refrigerant gas R472B, having a GWP of 526. Click on the logo for further information.

R472 ACS green refrigerant gas

The wide range of  the ACS Climatic and Thermostatic Chambers allows you to control the temperature and humidity inside the test compartment, in a range from -70°C to +180°C (temperature) and from 10% to 98% (relative humidity).

BENEFITS

  • The compact body in RAL 7044 grey provides excellent corrosion protection with a powder coated finish
  • The electromagnetic door lock provides maximum operator safety
  • Ecological refrigerant gas in line with the European Regulation 517/2014
  • 10” touchscreen panel with an intuitive, user-friendly interface
  • New software that allows remote control of all chamber functions
  • Automatic reporting, self-diagnosis, preventive maintenance
  • Inspection window
  • Ecological refrigerant gas in line with the European Regulation 517/2014
  • Internal light
  • Wheels and feet

Download the catalogue to see the full standard configuration.

  • Additional portholes
  • Water-cooled condenser
  • UV lamp: For aging tests on painted surfaces, plastics, rubber, etc.
  • UPS for the PLC
  • Stainless steel internal shelves
  • Notched porthole
  • New R472B refrigerant gas
  • MyAngel24™: the Interactive Support System


Download the catalogue to see the complete list of accessories.

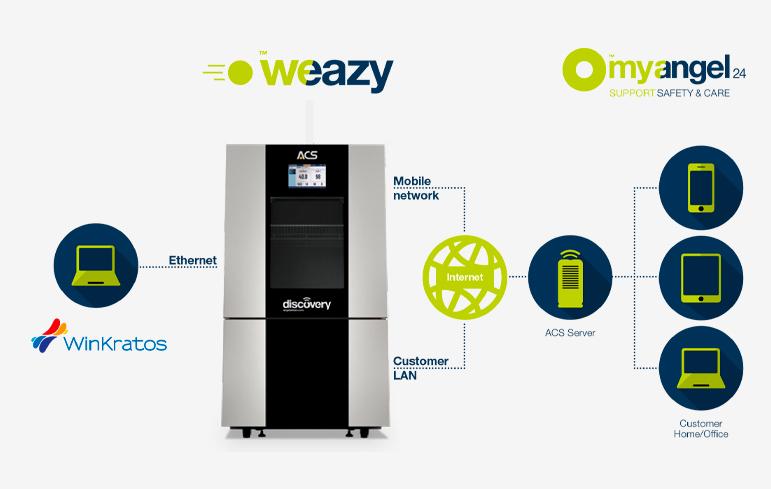

The MyKratos™ management software is embedded in the machine in built-in and completely dedicated hardware, which allows the control and management of the chamber functions. No installation is required, and it can be accessed from a PC via web browser or via the free app developed for tablets and smartphones. MyKratos™ allows multiuser and multilevel connections, even from different devices.

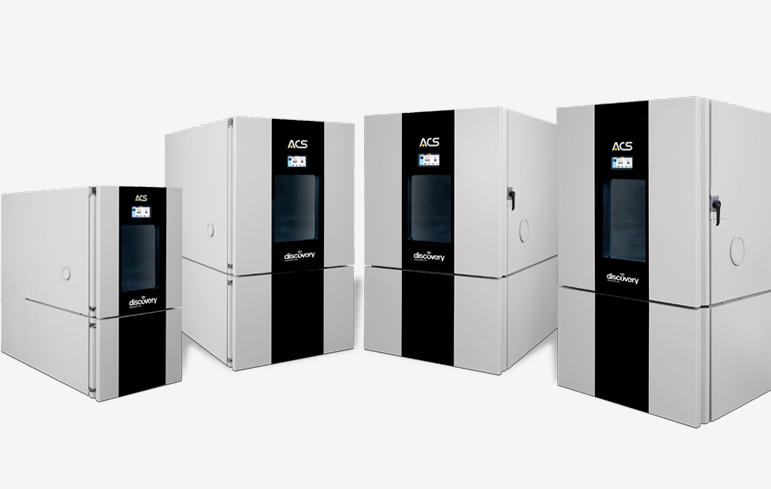

CLIMATIC AND THERMOSTATIC MODELS
T -40/+180°C
T -75/+180°C

DM340 (T)
DM600 (T)
DM1200 (T)
DM1600 (T)

DM340 C (T)
DM600 C (T)
DM1200 C (T)
DM1600 C (T)
Related products
    customized-battery-test-chambers
    Customized battery test chambers

    ACS is able to provide chambers that meet all the test requirements for battery cells, modules and packs of various sizes and with various temperature and relative humidity ranges.

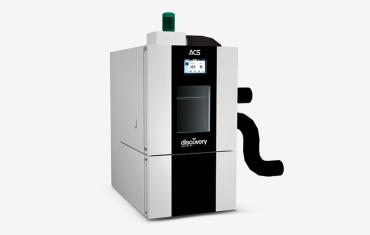

    discovery-my-climatic-chambers-with-air-conditioning-unit-kit
