Space simulation test
High Vacuum Thermoregulation test
Aerospace and aeronautics industry

Customized thermal vacuum chambers (TVC)

The ACS climatic chambers for testing in the aeronautics and aerospace industry reproduce the environmental conditions typical of the landing/take-off stages and travel in space, guaranteeing high standards of reliability and quality for the products that pass the tests.

Space simulators (TVC - Thermal Vacuum Chambers), that artificially reproduce the real working conditions of satellites and spacecraft equipment reaching pressure values down to 10-8 mbar, represent one of the highest achievements of ACS technology allowing it to become leader in the strategic Aerospace sector at international level.

ACS is able to offer customized solutions thanks to its more than 60 years of experience in designing customized environmental simulation chambers, its technical know-how and the close attention given to the requests of all our customers.

  • angelantoni-test-technologies-space-simulators-chambers
  • customized-space-simulators-high-vacuum-chamber
  • high-vacuum-chambers-acs
  • high-vacuum-chambers-angelantoni-test-technologies
  • acs-space-simulators-high-vacuum-chambers
  • angelantoni-space-simulators-high-vacuum-chambers
  • angelantoni-test-technologies-high-vacuum-chambers
  • standard-thermal-vacuum-chambers-space-simulators

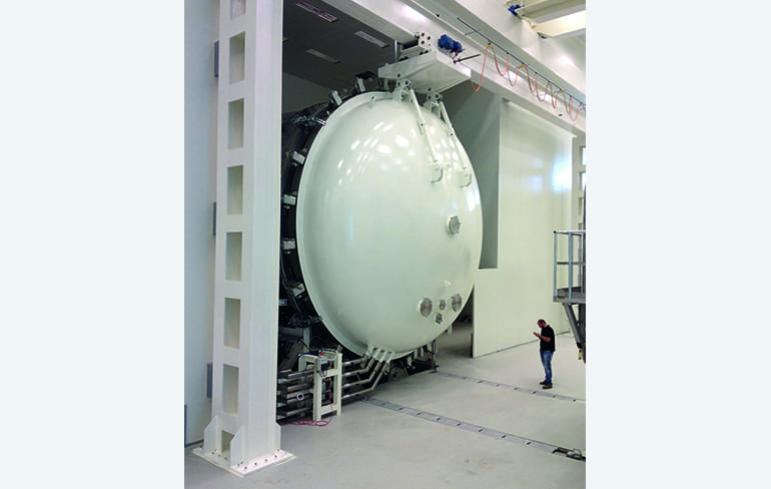

Example of a customized space simulator built according to customer specifications.

Test: high vacuum, temperature

  • Outside dimensions (chamber only): 7200x16000x9000 mm (LxDxH)
  • Inside working dimensions: 5500x10000 mm (ØxL)
  • Inside working volume: 240 m3
  • Temperature range: -190°C / +130°C
  • Rate of temperature change:
    • - 1°C/min from -100°C to +100°C
    • - 1°C/min from +100°C to -100°C
  • Vacuum limit: 1x10-6 mbar
  • Special features:
    • Door with up-and-over system for loading space vehicles
    • Special trolley for loading space vehicles on rails
    • Internal monorail crane
    • Spaceship horizontality control system

The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.

ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer’s testing needs.
