Pedal Test
Automotive industry

Pedal test chambers

ACS chambers can be integrated with an automatic pedal shifting system. Special safety measures have been specially designed to avoid risks related to operator exposure to moving parts and extreme temperatures.

ACS is able to offer customized solutions thanks to its more than 60 years of experience in designing customized environmental simulation chambers, its technical know-how and the close attention given to the requests of all our customers.

  • pedal-test-chamber-att

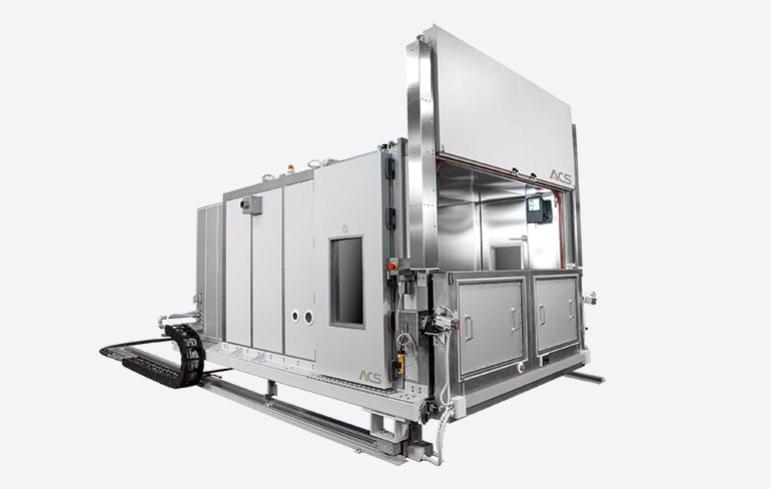

Example of a chamber built according to customer specifications.

  • Internal Dimensions: 2500x3000x2000 mm (LxDxH)
  • External Dimensions: 3200x5100x2700 mm (LxDxH)
  • Temperature range: -40°C / +150°C
  • Rate of temperature change, in accordance with IEC EN 60068-3-5 standards with 500 Kg steel specimen:
    • 1°C/min from +20°C to +150°C
    • 0.5°C/min from +20°C to -40°C

FEATURES:

  • Automatic cell movement system with regard to the fixed floor
  • Vertically sliding front door
  • Service doors on both sides
  • Front panels for interface with hydraulic cyclic pedal actuation system

The software for this type of chamber is an application that includes all the functions based on the specifications requested by the customer. The chamber has a built-in control panel for controlling and managing its functions. The chamber can also be controlled remotely using the WinKratos software or an equivalent application.

ACS can provide customized solutions that are adapted to the requests of every customer. Thanks to its accurate analysis of testing needs and highly specialized technical consultancy, ACS designs and manufactures environmental simulation chambers in the configuration most suitable for meeting the customer’s testing needs.

Related products
    airbag-test-chambers
    Airbag test chambers

    ACS chambers for testing airbag systems are designed to perform the standard tests required by the main regulations. Using high speed cameras, it is possible to record every moment of the...

    climatic-dyno-chambers

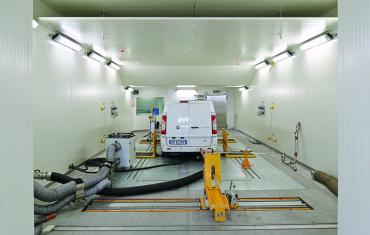

    Climatic Dyno chambers

    This type of chamber makes it possible to test the efficiency of the engine compartment under climatic stress during the typical working cycles of a vehicle according to international aut...

    customized-engine-test-chambers

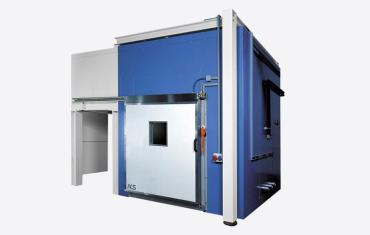

    Engine test chambers
